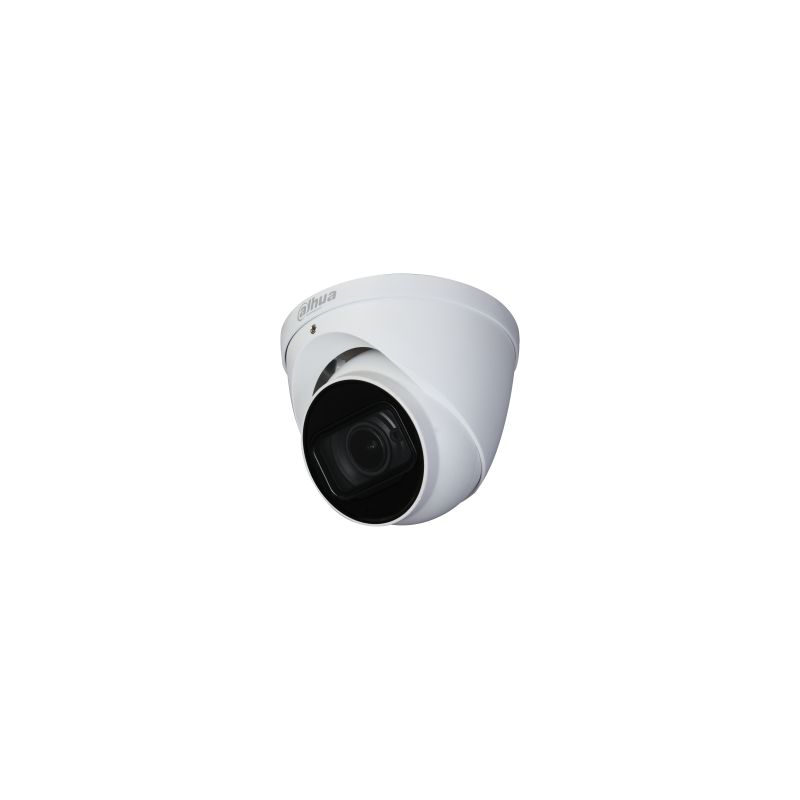

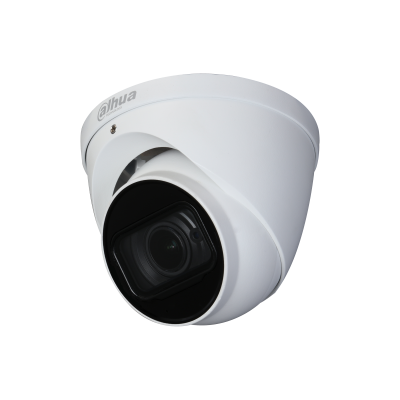

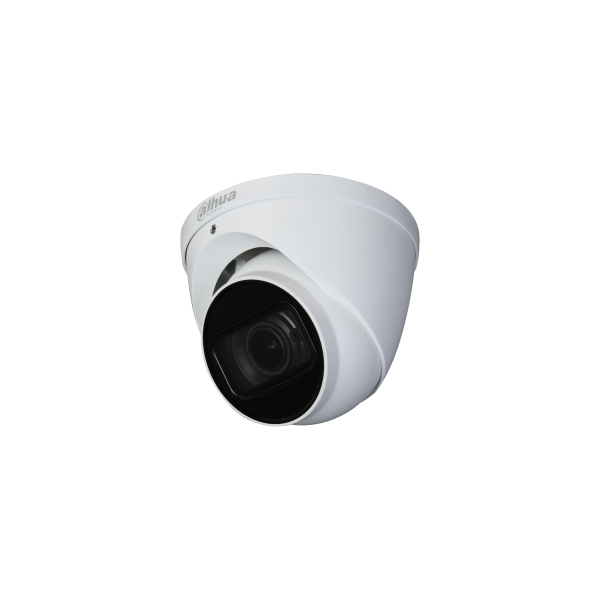

HAC-HDW2802TP-Z-A-3711

Donnez votre avis

119,00 €

TTC

livraison sous 48H

Eyeball HDCVI blanc - 8 Mp - VF motorisée 3.7-11mm IR 60m - Starlight - Micro

Technologie de caméra : Caméra HDCVI
Fonctionnalités de la caméra : Starlight
Résolution : 8 Mpxls
Varifocale : 3.7 - 11 mm
IR & LED : IR 60 m

Garanties sécurité

Garanties sécurité vers SSL.

Politique de livraison

Retrait en boutique à Paris

Guarantee safe & secure checkout

Camera

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s

Min. Illumination

0.001 lux@F1.5 (Color, 30 IRE)
0.0001 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

60 m (196.85 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

Yes

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

H: 113°–47°; V: 60°–26°; D: 133°–53°

Iris Control

Fixed

Close Focus Distance

1.2 m (3.94 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

83.4 m

(273.62 ft)

33.4 m

(109.58 ft)

16.7 m

(54.79 ft)

8.3 m

(27.23 ft)

13.5 mm

189.6 m

(622.05 ft)

75.8 m

(248.69 ft)

37.9 m

(124.34 ft)

19.0 m

(62.34 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate

CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps;
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps
AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps
TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps
CVBS: PAL: 960H; NTSC: 960H

Resolution

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio Input

One channel built-in MIC

Power

Power Supply

12 VDC ± 30%(It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 8.1 W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

Φ122 mm × 104.8 mm (Φ4.80" × 4.13")

Net Weight

0.6 kg (1.32 lb)

Gross Weight

0.76 kg (1.68 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

Marque DAHUA

Référence HAC-HDW2802TP-Z-A-3711

En stock 3 Produits

HAC-HDW2802TP-Z-A-3711
