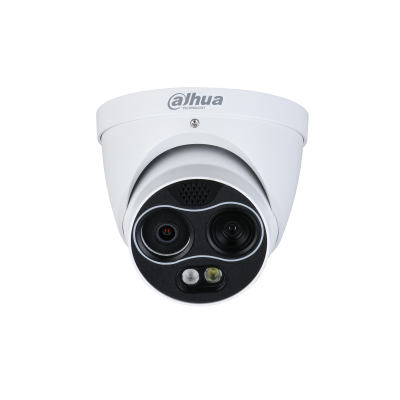

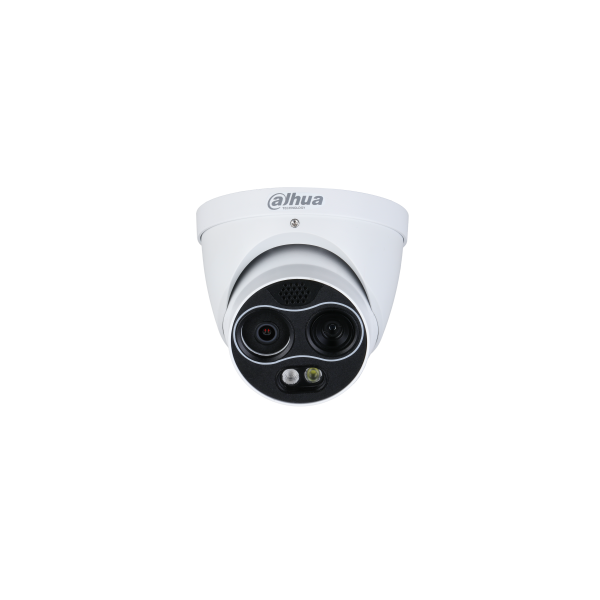

TPC-DF1241P-D3F4

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Thermal Sensitivity (NETD)

< 50 mK (@f/1.0, 25 Hz, 300 K)

Focal Length

2 mm

3.5 mm

7 mm

Field of View

H: 87.8°, V: 63.8°

H: 50.6°, V: 37.8°

H: 24°, V: 18°

Close Focus Distance

0.3 m (0.98 ft)

0.5 m (1.64 ft)

1.0 m (3.28 ft)

Effective Distance
Human (1.8 m × 0.5 m)

D: 83 m (272 ft)

R: 21 m (69 ft)

I: 11 m (36 ft)

D: 146 m (479 ft)

R: 38 m (125 ft)

I: 19 m (622 ft)

D: 292 m (958 ft)

R: 75 m (246 ft)

I: 38 m (125 ft)

Effective Distance
Vehicle (4.0 m × 1.4 m)

D: 222 m (728 ft)

R: 55 m (80 ft)

I: 27 m (89 ft)

D: 389 m (1276 ft)

R: 97 m (318 ft)

I: 49 m (161 ft)

D: 778 m (2552 ft)

R: 194 m (636 ft)

I: 97 m (318 ft)

Aperture

F1.0

Digital Detail
Enhancement (DDE)

Yes

Digital Zoom

16×

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot; Blackhot; Ironrow; Icefire; Fusion; Rainbow; Globow; Iconbow1; Iconbow2, etc.)

Fusion Mode

3 (Warm color; cool color; Ironred)

Visible

Image Sensor

1/2.7'' CMOS

Max. Resolution

2336 × 1752

Pixel

4 MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 lux
Black & white: 0.005 lux

0 lux (IR on)

IR Illumination Distance

≥30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Focal Length

2 mm

4 mm

8 mm

Aperture

F2.2

F1.6

F2.0

Field of View

H: 94°

V: 72°

D: 116°

H: 71.2°

V: 52°

D: 92.6°

H: 33.4°

V: 25°

D: 41.9°

Focus Control

Fixed

Close Focus Distance

0.3 m (0.98 ft)

1.0 m (3.28 ft)

2.5 m (8.2 ft)

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire, Intrusion

Advanced Intelligence

Fire Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification

Smoking Detection

Call Detection

Video and Audio

Video Compression

H.265; H.264M; H.264H; H.264B; MJEPG

Resolution

Thermal:

Main Stream: 1280 × 960 (1.3M) ; XVGA (1024 × 768) ; VGA (640 × 480) ; 256 × 192, 1280 × 960 by default

Sub Stream: VGA (640 × 480) ; 256 × 192, 256 × 192 by default

Visual:

Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576), 2336 × 1752 by default

Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288), 352 × 288 by default

Frame Rate

Thermal

50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default

60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Visual

50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default

60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 G)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier

User/Host

10

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014

FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014

Port

Network

1 × 10 M/100 M Ethernet port (RJ-45)

Audio Input

1

Audio Output

1

Alarm Input

1

Alarm Output

1

RS-485

1 pair

Power

Power Supply

12 VDC, 1.2 A (±20%)

PoE

Power Consumption

Basic: < 6.5 W (LED off)

Max: < 13 W (LED on, heater on)

Environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Storage Temperature

–30°C to +70°C (–22°F to ﹢158°F)

Operating Humidity

≤ 95%

Protection

IP67, anti-surge 6 kV, anti-elctrostatic 6 kV (touched by objects), anti-elctrostatic 8 kV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)

IVS Range

Focal Length

2 mm

3.5 mm

7 mm

Human (1.8 m × 0.5 m)

15 m

26 m

52.5 m

Vehicle (1.4 m × 4.0 m)

42 m

72.5 m

146.5 m
