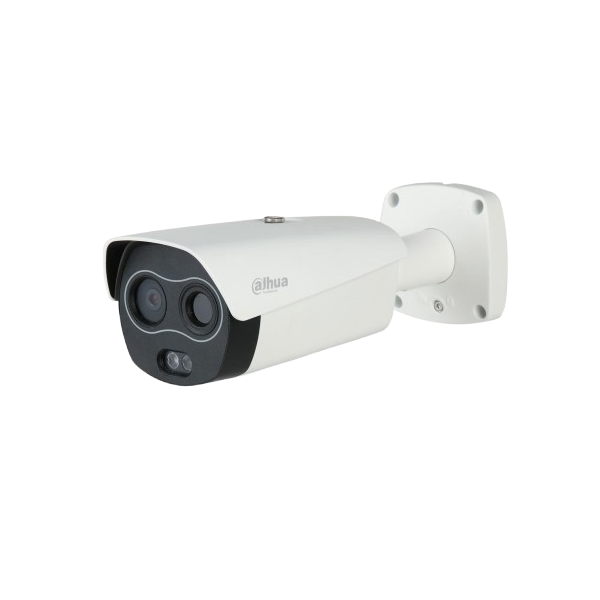

TPC-BF5421P-T13F8-HTM

General

Appearance

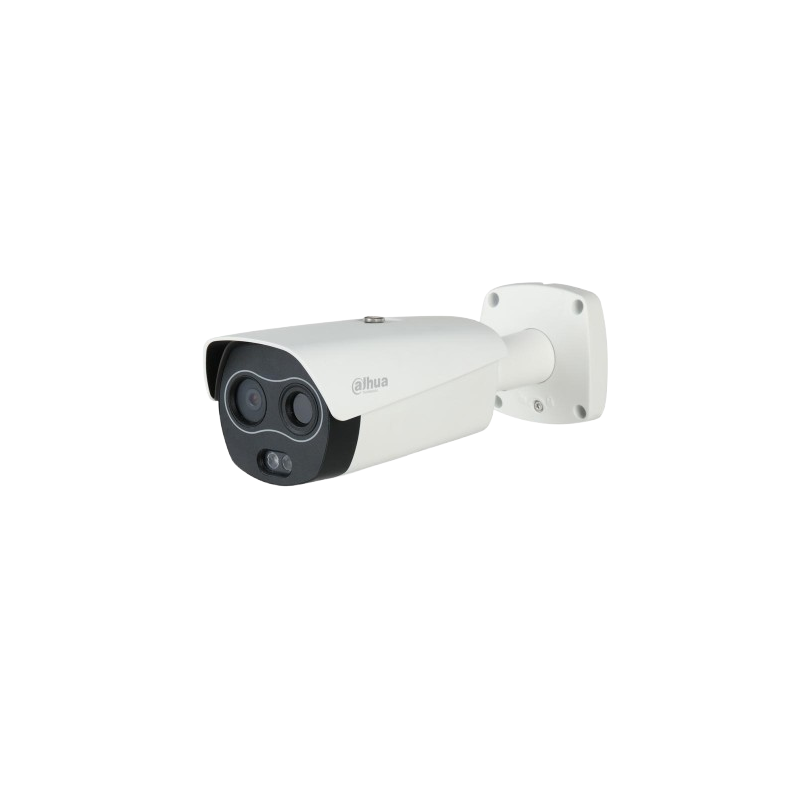

Thermal Network Hybrid Bullet Camera

Type

Monitor

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400 × 300

Pixel Pitch

17 μm

Spectral Range

8 μm –14 μm

Thermal Sensitivity (NETD)

≤ 40 mK@f/1.0

Focal Length

7.5 mm

13 mm

25 mm

Field of View

H: 53.7°

V: 39.7°

H: 30°

V: 22.6°

H: 15.5°

V: 11.6°

Focus Control

Athermalized

Aperture

F1.0

Focal Length

7.5 mm

13 mm

25 mm

DRI Effective Distance Human (1.8 m × 0.5 m)

D: 221 m

R: 57 m

I: 28 m

D: 382 m

R: 98 m

I: 49 m

D: 735 m

R: 189 m

I: 95 m

DRI Effective Distance Vehicle (4.0 m × 1.5 m)

D: 558 m

R: 147 m

I: 74 m

D: 1020 m

R: 225 m

I: 127 m

D: 1961 m

R: 490 m

I: 245 m

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

19 levels

AGC

Auto/Manual

Noise Reduction

2D NR/3D NR

Image Flip

0°; 90°; 180°; 270°/Mirror

Color Palettes

18 (white hot/black hot/fusion/rainbow/globow/ironbow1/ironbow2/sepia/color1/color2/icefire/rain/red hot/green hot/spring/summer/autumn/winter)

Visible

Image Sensor

1/2.8"CMOS

Max. Resolution

1920 × 1080

Pixel

2 MP

Horizontal Definition

≥ 1100 TVL

Min. Illumination

Color: 0.01 lux

Black & white: 0.001 lux

0 lux (IR on)

AGC

Auto/Manual

Noise Reduction

2D NR/3D NR

S/N Ratio

> 55 dB

White Balance

Auto/Manual/Indoor/Outdoor/Tracking/Sodium lamp/Street lamp/Natural

Defog

Electronic defog

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Day/Night

Auto (ICR)/Color/B/W

Iris Control

Fixed

Image Flip

0°; 90°; 180°; 270°/Mirror

Exposure Compensation

Yes

Focal Length

4 mm

8 mm

Field of View

H: 84.1°

V: 45.4°

H: 38.4°

V: 22.2°

Aperture

F2.0

F1.9

Illuminator Type

IR

Illuminator On/Off Control

Auto/Manual

Illumination Distance

35 m (114.5 ft)

50 m (164.0 ft)

Illuminator Angle

60°

45°

Audio and Video

Video Compression

H.265; H.264M; H.264H; H.264B

Resolution

Thermal

Main stream: 1280 × 1024; 1280 × 960 ; 1280 × 720; 400 × 300; 192 × 144; 1280 × 960 (default)

Sub stream: 640 × 512; 640 × 480; 400 × 300; 192 × 144; 400 × 300 (default)

Visible

Main stream: 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 1080p (default)

Sub stream: D1 (704 × 576); CIF (352 × 288); 352 × 288 (default)

Video Frame Rate

Thermal (50 Hz):

Main stream: 1 fps–25 fps

Sub stream: 1 fps–25 fps

Visible (50 Hz):

Main stream: 1 fps–25 fps

Sub stream: 1 fps–25 fps

Thermal (60 Hz):

Main stream: 1 fps–30 fps

Sub stream: 1 fps–30 fps

Visible (60 Hz):

Main stream: 1 fps–30 fps

Sub stream: 1 fps–30 fps

Video Compression

G.711a; G.711mu; PCM

Image Encoding Format

JPEG

Function

Two-way Audio

Yes

Sound and Light Alarm

Local audio and white light alarm prompts

Network Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x

Region of Interest (RoI)

Yes

Regional Focus

NA

Storage

FTP; Micro SD card (optional 512 GB, hot swapping)

Interoperability

CGI

Browser

IE: IE8 and later

Chrome: 42 and earlier

Firefox: 42 and earlier

User/Host

Up to 20 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

IVS

IVS

Yes. Supports tripwire and intrusion.

Intelligence

Fire Detection

Yes

Cold/Hot Spot Trace

Yes

Target Distinction

Human/Vehicle classification

Target Filtering

Yes

Smoking Detection

Yes

Call Detection

Yes

Port

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

2

Alarm Output

1

Alarm Linkage

Recording; digital output; built-in sound and light alarm; email; snapshot; access control

Audio Input

1

Audio Output

1

RS-485

1

Power

Power Supply

12 VDC ± 20%, PoE (802.3af), ePoE

Power Consumption

Basic: ﹤ 8 W (12 VDC)

Max. (adapter excluded): ﹤ 18 W

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤ 95%

Physical Characteristics

Protection

IP67

Product Dimensions

262.0 mm × 11.6 mm × 110.6 mm (10.31" × 0.46" × 4.35") (L × W × H)

Packaging Dimensions

Package: 365 mm × 175 mm × 176 mm (14.37" × 6.89" × 6.93") (L × W × H)

Protection box: 902 mm × 380 mm × 380 mm (35.51" × 14.96" × 14.96") (L × W × H)

Net Weight

≤ 1.8 kg (3.97 lb)

Gross Weight

≤ 2.5kg (5.51 lb)

Installation

Wall mount; pole mount; corner mount

Power

Optional: S024-1A120200HE; S024-1A120200HK; S024-1A120200HU

Bracket

Wall mount: DH-PFA122 (optional)

Corner mount: DH-PFA151 (optional)

Pole mount: DH-PFA152-E (optional)
