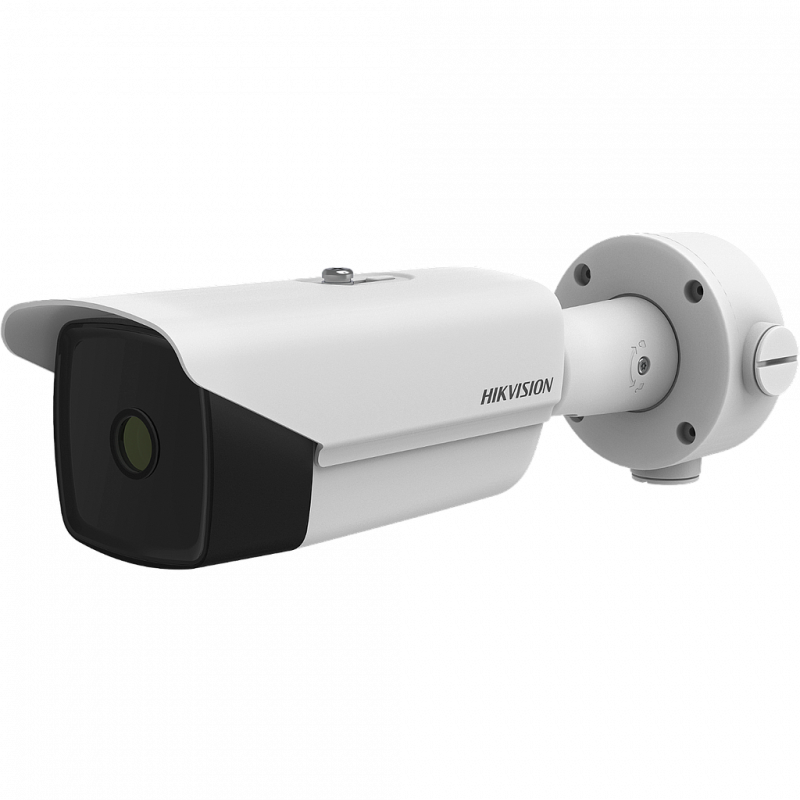

DS-2TD2138-15/QY(O-STD)

2 089,00 €
TTC
livraison sous 48H

Caméra Thermique - Focale Fixe 15 mm - Résolution 384 × 288 -Protection périmétrique - Anti corrosion

Quantité
Add to wishlist

  Garanties sécurité

Garanties sécurité vers SSL.

  Politique de livraison

Retrait en boutique à Paris

Guarantee safe & secure checkout

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution384 × 288
  • Pixel Pitch12 μm
  • Spectral Range8 μm to 14 μm
  • NETD< 35 mK (25°C, F1.0)
  • Focal Length15 mm
  • IFOV0.80 mrad
  • Field of View17.0° × 13.0° (H × V)
  • Min. Focusing Distance2.5m
  • ApertureF1.0
  • Digital Zoom2×, 4×, 8×
  • Image Effect
  • Target ColorationYes. Supported in white hot and black hot mode.
  • Smart Function
  • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range-20°C to 150°C (-4°F to 302°F)
  • Temperature Accuracy± 8°C (± 14.4°F)
  • Video and Audio
  • Main Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
  • Sub-stream25 fps (704 × 576, 640 × 512, 352 × 288)
  • Third Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
  • Video Compression

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264/MJPEG

    Third Stream: H.265/H.264/MJPEG

  • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP, SFTP,SSL
  • APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
  • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
  • Simultaneous Live ViewUp to 20 channels
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Live view (plug-in allowed): Internet Explorer 11

    Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +

    Local service: Chrome 57.0 +, Firefox 52.0 +

  • Network StorageMicroSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • Interface
  • Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • Alarm Input2, alarm input (0 to 5 VDC)
  • Alarm Output2, alarm output (alarm response actions configurable)
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input

    1, 3.5 mm Mic in/Line in interface

    Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%

  • Audio OutputLinear level, impedance: 600 Ω
  • Communication Interface

    1, RJ45 10 M/100 M self-adaptive Ethernet interface

    1, RS-485 interface (half duplex)

  • General
  • Web Client Language

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • Alimentation

    24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block

    PoE (802.3af, class 3)

  • Power Consumption

    24 VAC ± 25%: 0.13 A to 0.22 A, Max. 5 W

    12 VDC ± 25%: 0.37 A to 0.61 A, Max. 5 W

    PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, Max. 5.5 W

  • Working Temperature/Humidity

    Temperature: -40 °C to 65 °C (-40 °F to 149 °F)

    Humidity: 90% or less

  • Protection Level

    IP67 Standard

    TVS 6000V lightning protection, surge protection, voltage transient protection

    IK10-rated housing

  • Dimensions351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
  • WeightApprox. 1.77 kg (3.90 lb)
  • Detection Range Table/Smart Function Range
  • VCA Range for Humans150 m
  • VCA Range for Vehicles450 m
HIKVISION
DS-2TD2138-15/QY(O-STD)
