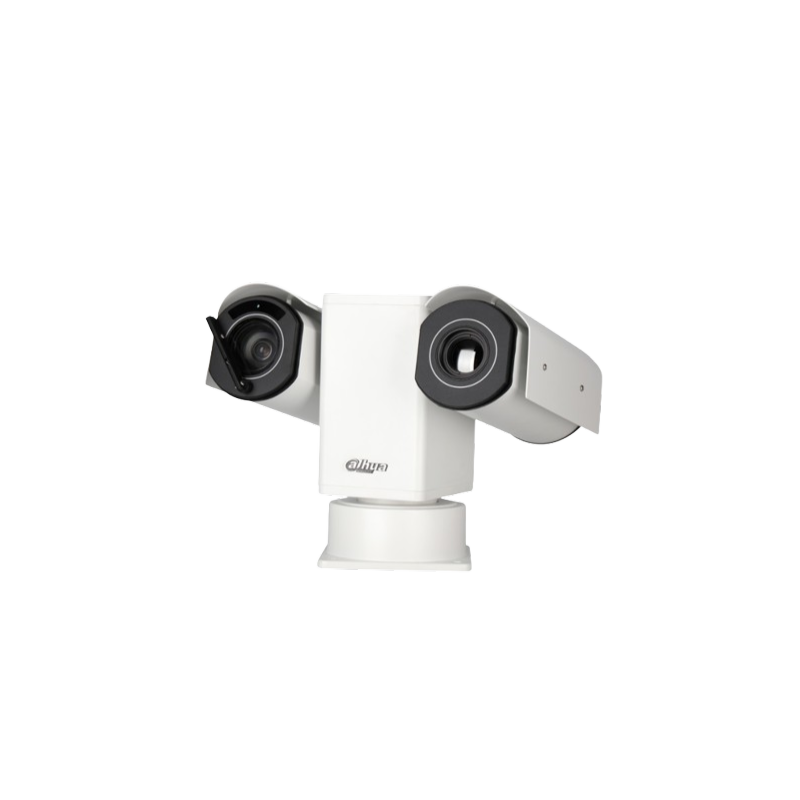

TPC-PT8420M-TB19

Thermal Camera

Image Sensor

Uncooled VOx Microbolometer

Effective Pixels

400(H)x300(V)

Pixel Size

17um

Thermal Sensitivity(NETD)

<40mK@f/1.0

Spectral Range

7~14um

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

14(Whitehot/Blackhot/Ironrow/Icefire/

Fusion/Rainbow/Globow/Iconbow1/

Iconbow2 .etc)

Thermal Lens

Lens Type

Fixed

Focus Control

Athermalized, Focus-free

Focal Length

19mm

25mm

Angle of View

H:20.4°, V:15.3°

H:15.5°, V:11.6°

Effective Distance①

Man(1.8m*0.5m)

D②:640m

R③: 160m

I ④: 80m

D:1000m

R:250m

I : 125m

Effective Distance

Vehicle(2.3m*2.3m)

D:2000m

R:500m

I : 250m

D:3000m

R: 720m

I : 360m

Visible Camera

Image Sensor

1/1.9" Sony CMOS

Effective Pixels

1944(H)x1092(V)

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

0.001Lux@F1.5(Color), 0.0001Lux@F1.5(B/W)

S/N Ratio

More than 55dB

IR Distance

150m (492ft)

IR On/Off Control

Auto / Manual

IR LEDs

4

Visible Lens

Focal Length

6 ~ 180mm

Max Aperture

F1.5 ~ F4.3

Angle of View

H: 59° ~ 2.4°

Optical Zoom

30x

Focus Control

Auto / Manual

Close Focus Distance

100mm~ 1000mm (0.33ft~3.28ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless;Tilt: -90° ~ 90°

Manual Control Speed

Pan: 0.1° ~60° /s; Tilt: 0.1° ~45° /s

Preset Speed

Pan: 0.1° ~90° /s ;Tilt: 0.1° ~60° /s

Preset

300

PTZ Mode

5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan

Speed Setup

Human-oriented focal length/ speed adaptation

Power Up Action

Auto restore to previous PTZ and lens status

after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Video

Compression

H.264 / MJPEG

Frame Rate

Main Stream:

Thermal: 1280x1024(default) / 720P @1~25/30fps

Visible: 1080P(default) /720P @1~25/30fps

Sub Stream:

Thermal: 640x512(default) / 320x256 @1~25/30fps

Visible: CIF(default) / D1 @1~25/30fps

Bit Rate Control

CBR / VBR

Bit Rate

H.264: 640 ~8192Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR

White Balance

Auto / ATW / Indoor / Outdoor / Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 zone, Rectangle)

Region of Interest

Off / On (4 zone)

Electronic Image Stabilization

(EIS)

NA

Defog

Off / On

Digital Zoom

4x(19 levels)

Flip

180°

Mirror

Off / On

Privacy Masking

Off / On (4 area, Rectangle)

Temperature Measurement

Measurement Range

Low Temperature: -20°C ~+150°C

High Temperature: 0°C ~+550°C

Measurement Accuracy

Max (±2°C, ±2%)/Operating Temperature(-10°C~50°C)

Measurement Mode

Spot / Line / Area

Measurement Preset

Spot: 12

Line: 12

Area: 12

Support 12 rules per preset simultaneously

Audio

Compression

G.711A / G.711Mu / AAC

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Fire detection & alarm

Tracking Trigger Mode

NA

Tracking Trigger Event

NA

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF

Interoperability

ONVIF Profile S&G, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

Micro SD (256GB)

Memory status display (Normal / Error / Active / Formatting / Lock),

NAS (Network Attached Storage), Local PC for instant recording

Web Viewer

<ie11, <chrome45,="" <firefox52<="" span="" style="box-sizing: border-box;"></ie11,>

Management Software

Smart PSS, DSS

Smart Phone

Android, Ios

Certifications

Certification

CE (EN 60950:2000) FCC (FCC Part 15 SubpartB )

Interface

Video Interface

1.0Vp-p/75Ω, PAL / NTSC (HDCVI Optional)

Audio Interface

1/1 In/Out

RS485

Support

Alarm

2/2 In/Out

Electrical

Power Supply

9 ~ 36V DC

Power Consumption

32W, Max. 50W (Heater, LEDs on)

Environmental

Operating Condition

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Strorage Conditions

-40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH

Ingress Protection

IP66

Construction

Casing

Metal

Dimensions

341 mm × 262mm× 275mm (13.42" x 10.31" x 10.82")(With bracket)

Net Weight

7.5Kg (16.53 lb)

Gross Weight

11Kg (24.25 lb)
