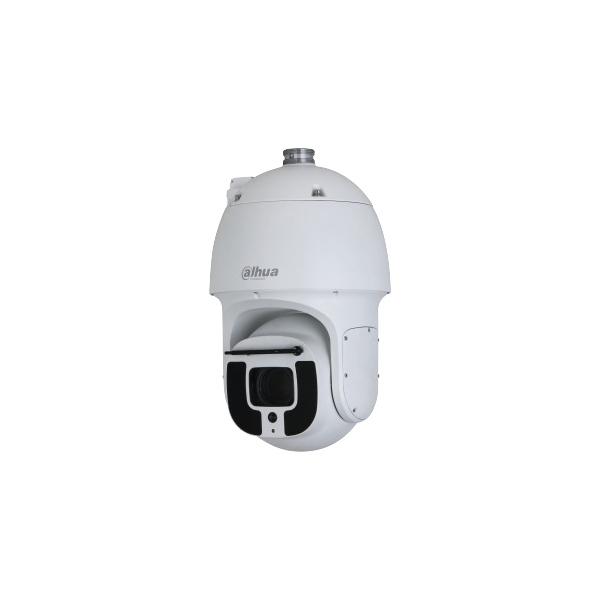

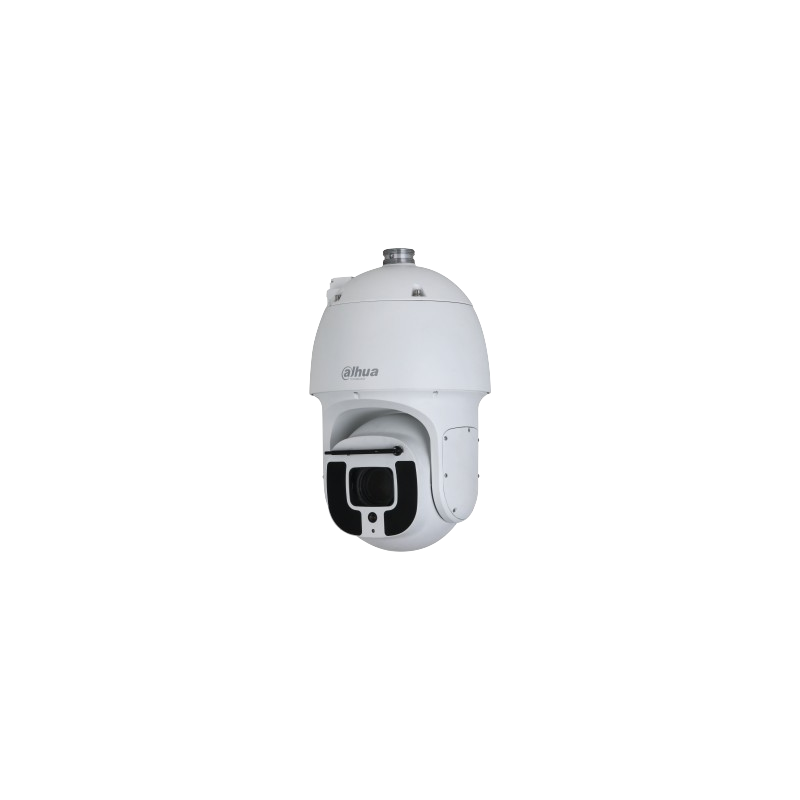

SD8A840PA-HNF-SL

Camera

Image Sensor

1/1.8" CMOS

Pixel

8 MP

Max. Resolution

3840 (H) × 2160 (V)

ROM

8 GB

RAM

2 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 Lux@F1.4
B/W: 0.0005 Lux@F1.4
0 Lux (IR light/laser on)

Illumination Distance

500 m (1640.42 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR; Off

Illuminator Number

10 (IR)

Wiper

Smart wiper

Lens

Focal Length

5.6 mm–223 mm

Max. Aperture

F1.4–F4.5

Field of View

H: 63.9°–2.0° V: 37.3°–1.1° D: 71.2°–2.3°

Optical Zoom

40×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.5 m–2 m (1.64 ft–6.56 ft)

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

4400 m (14435.70 ft)

1740 m (5708.66 ft)

880 m

(2887.14 ft)

400 m (1312.34 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –30° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–240°/s
Tilt: 0.1°–100°/s

Preset Speed

Pan: 240°/s
Tilt: 120°/s

Preset

300

PTZ Protocol

DH-SD
Pelco-P/D (auto recognition)

Intelligence

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; tracking; optimization; capturing pictures; uploading high-quality face snapshots.
Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model, sunshield, seatbelt, smoking, calling, ornament, and annual inspection mark.
Non-motor vehicle attributes: Type, color, number of people, top type and color, helmet.
Human body attributes: Top/bottom type and color, bag, hat, gender, and umbrella.
Face attributes: Gender, age, expressions, glasses, mouth mask, beard.

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Recognition

Support face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement. Support attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Support face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, quality first. Support 5 face databases; register one by one or in batches; support face recognition similarity settings and face comparison on the basis of 10,000 face databases.

Video

Video Compression

H.264H; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+

Resolution

4K (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)

Video Frame Rate

50 Hz: Main Stream: 3840 × 2160@25 fps/2560 × 1440@25 fps/1920 × 1080@25 fps/1280 × 960@25 fps/1280 × 720@25 fps Sub Stream 1: 704 × 576@25 fps/352 × 288@25 fps Sub Stream 2: 1920 × 1080@25 fps/1280 × 960@25 fps/1280 × 720@25 fps 60 Hz: Main Stream: 3840 × 2160@30 fps/2560 × 1440@30 fps/1920 × 1080@30 fps/1280 × 960@30 fps/1280 × 720@30 fps Sub Stream 1: 704 × 480@30 fps/352 × 240@30 fps Sub Stream 2: 1920 × 1080@30 fps/1280 × 960@30 fps/1280 × 720@ 30 fps

Video Bit Rate

Default resolution of the main stream:
H264: 512–16384 Kbps
H265: 256–10240 Kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; manual; tracking; outdoor; indoor; auto outdoors; sodium lamp (auto); sodium lamp

Gain Control

Auto; manual

Noise Reduction

2D; 3D

Defog

Optical

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas, and up to 8 areas in the same view

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Storage

FTP; Micro SD card (256 GB)

Browser

IE7 and later versions
Chrome 45 and later versions
Firefox 52 and earlier versions
Safari

Management Software

DSS; DMSS; Easy4ip; Smart PSS; IVSS

Certification

Certifications

CE; FCC; NEMA 4X

Port

Analog Output

1 channel (CVBS output, BNC)

RS-485

1 (baud rate range: 1200 bps–9600 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Linkage

Capture; preset; tour; pattern; SD card recording; triggering on-off value output; client electric map; sending email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder state detection; memory card state detection; memory space detection; power exception detection

Alarm I/O

7/2

Audio I/O

1/1

Power

Power Supply

36 VDC/2.23A ± 25% HI-PoE

Power Consumption

Basic: 30 W
Max.: 48 W (IR)

Environment

Operating Temperature

–40°C to 70°C (–40°F to 158°F)

Operating Humidity

≤ 95%

Protection

IP67; TVS 6000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

439 mm × Φ262 mm (17.28" × Φ10.32")

Net Weight

10 kg (22.05 lb)

Gross Weight

12 kg (26.46 lb)
