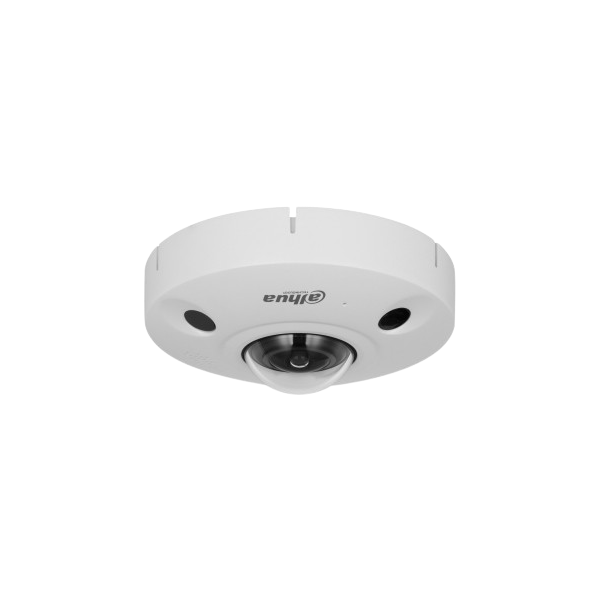

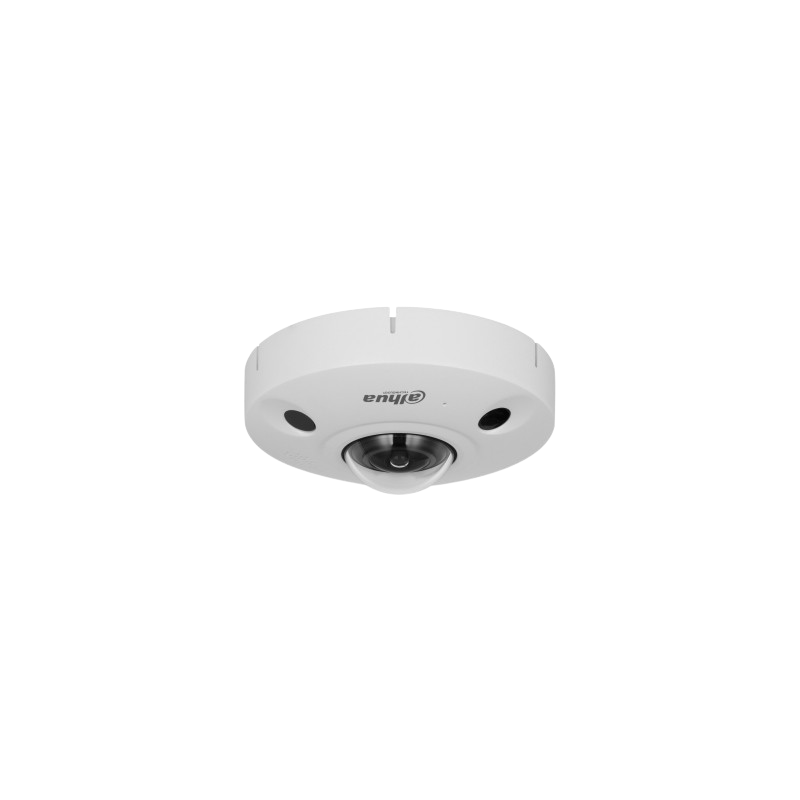

IPC-EBW8842P-AS

Camera

Image Sensor

1/1.7" CMOS

Max. Resolution

3280 (H) × 2480 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 Lux@F2.0 (Color, 30 IRE)

0.001 Lux@F2.0 (B/W, 30 IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

up to 10 m (32.81 ft) (IR)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR LED)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

1.85mm

Max. Aperture

F2.0

Field of View

Horizontal: 185°;

Vertical: 180°

Iris Control

Fixed

Close Focus Distance

0.4 m (1.31 ft)

DORI Distance

Detect

Observe

Recognize

Identify

40.0 m

(131.23 ft)

16.0 m

(52.49 ft)

8.0 m

(26.2 ft)

4.0 m

(13.12 ft)

Smart Event

Heat Map

Yes

Professional, intelligent

IVS (Perimeter Protection)

Intrusion; tripwire

People Counting

Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can display and export reports based on year, month, week, day or custom time.

Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average strand time or people number in the area exceeds the threshold. It can display and export reports based on month, week, day or custom time

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Fisheye

Installation

Ceiling mount; wall mount; ground mount

Decoding Mode

Front-dewarp; Back-dewarp; Front-dewarp+Back-dewarp

Display Mode

Front-dewarp (hardware decoding):1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R
*O: Fisheye image view; P: Panoramic image view; R: Region image view
Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid)

Video

Video Compression

H.265; H.264; H.264H; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 3280 × 2480@(1–25/30 fps)

sub stream: 704 × 576@(1–25/30 fps)

third stream: 1280 × 960@(1–25/30 fps)

Fisheye mode:

1O (3280 × 2480)

1P (4096 × 1024)

2P (2432 × 2432)

1R (1216 × 1216)

2R (2432 × 2432)

4R (2432 × 2432)

1O + 3R (2432 × 2432)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

3280 × 2480; 2880 × 2160; (3M) 2048 × 1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 8 kbps–16384 kbps

H265: 3 kbps–13891 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Audio Compression

PCM; G.711A; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card durability warning; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay detection; people counting; security exception

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P (Only supported by general version)

User/Host

20

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE11, IE10

Chrome: 48.0.2564.116

Firefox: 48.0.2

Edge: 42.17134.1.0

Management Software

Smart PSS; DSS; DMSS

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channel in: wet contact,5mA 3V–5 VDC

Alarm Output

2 channels out: dry contact,1,000mA 30 VDC/500mA 50 VDC

Power

Power Supply

12 VDC/POE+ (802.3at)

Power Consumption

Basic: 6.5 W (12 VDC); 6.1 W (PoE)

Max. (ICR + IR intensity): 13 W (12 VDC); 13.9 W (PoE)

Heating: 3 W (12 VDC); 3 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Protection

IP67; IK10

Structure

Casing

Metal

Product Dimensions

59.8 mm × Φ149.8 mm (2.35" × Φ5.90")

Net Weight

0.79 kg (1.74 lb)

Gross Weight

1.21 kg (2.67 lb)
