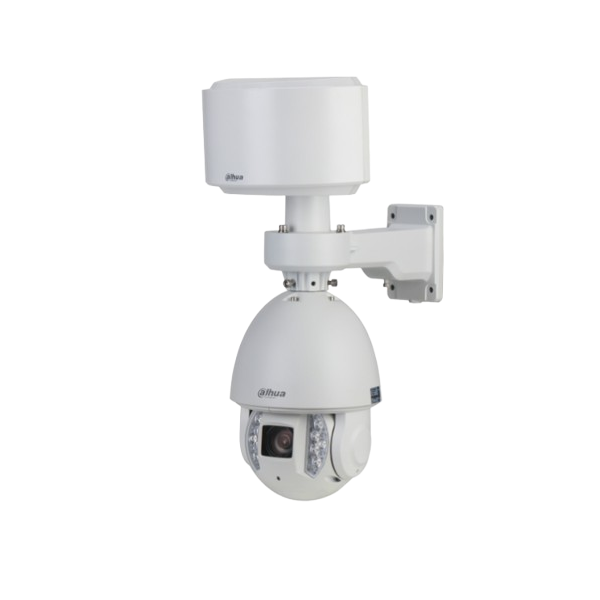

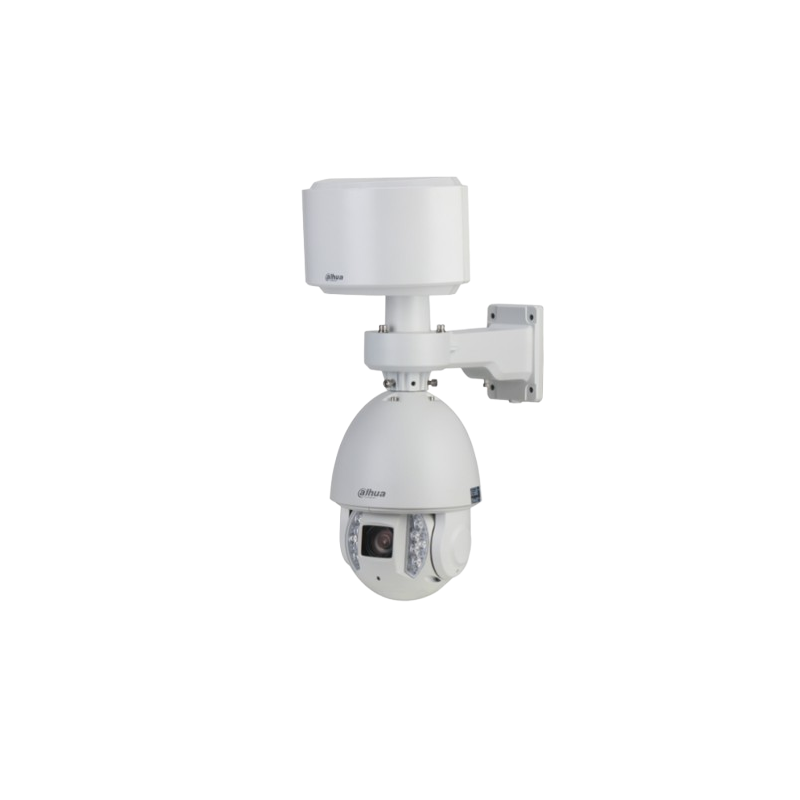

PFR4KS-E50

Radar

Working Frequency

24.05~24.25GHz

Transmit Power

<20 dBm (100mW)

Network Interface

RJ45

Detecting Mode

Doppler, slow-moving, quick-through.

Target Type

Human/Vehicle/Animal

Max. Target Number

64

Distance

50m(164.04ft)

Angle(Horizontal)

120°

Angle(Vertical)

20°

Scan Frequency

10Hz

Max. Detection Speed

≤50km/h, continuous trace

Min. Detection Speed

0.17m/s, continuous trace

Angle Accuracy

±1°

Installation Height

2~4m(6.56~13.12ft)

Modulation Type

FMCW (Frequency-Modulated Continuous-Wave)

Distance Accuracy

±0.5m(1.64ft)

Transmission power

<20 dBm (100mW)

Camera

Image Sensor

1/1.9” CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.0024Lux@F1.6; B/W: 0.0024Lux@F1.6; 0Lux@F1.6 (IR on)

S/N Ratio

>56.5dB

IR Distance

Distance up to 220m (722ft)

IR On/Off Control

Auto /Manual

Lens

Focal Length

6mm~198mm

Max. Aperture

F1.5-F4.8

Angle of View

H: 60.4°~2.4°

Optical Zoom

33x

Close Focus Distance

10mm~1500mm

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°

Manual Control Speed

Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s

Preset Speed

Pan: 240° /s; Tilt: 200° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

IVS

Tripwire, Intrusion, Abandoned/Missing

Smart Tracking

Auto Tracking

Support

Import Map

Support PNG, JPG, and BMP maps with the resolution of 480×360~3000×4000

Draw defense protection zone

Support draw alarm zones and shield zones

Video

Compression

H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream)

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/1.3M(1280x960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/1.3M/720P((1~50/60fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 1080P/720P/D1/(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 256K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR(140dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization (EIS)

Support

Optical Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/MPEG2-Layer2

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

FCC: EMC Part 15B

FCC ID: RF Part 15C

CE: EN55032/EN55024/EN301489

Interface

Video Interface

1 port(BNC, 1.0V[p-p], 75Ω)

RS485

1

Audio I/O

1/1

Alarm I/O

7/2

Electrical

Power Supply

36V DC/2.23A (±25%), Hi-PoE

Power Consumption

Radar: 8W

PTZ: 24W, 38W (IR on)

Environmental

Operating Conditions

-40°C ~ 65°C (-40°F ~ +149°F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10 (Radar)

Construction

Casing

Metal

Dimensions

443.3mm x 297mm x 665.3mm (17.45"x11.69"x26.19")

Net Weight

12.5kg(27.56lb)

Gross Weight

16kg(35.27lb)
