Nouveau

HY-FT121LDP-TD1F4

Donnez votre avis

199,00 €

TTC

livraison sous 48H

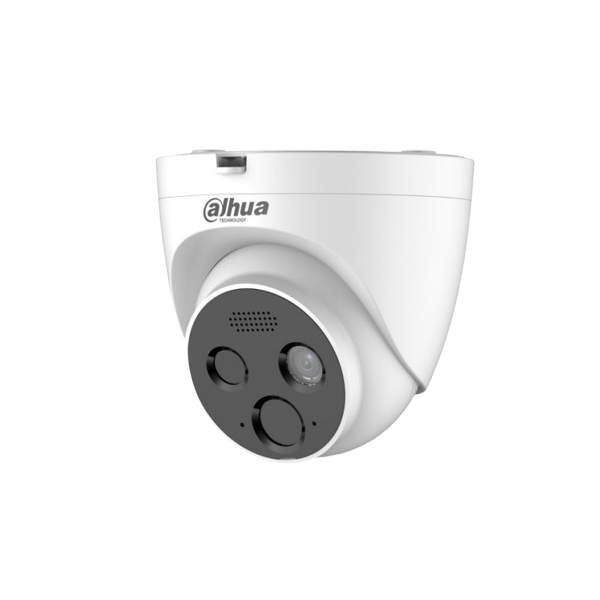

Eyeball IP blanc - Focale thermique 1.2mm - 120x90 - FF 4mm IR 15m - 2 MP -Détection incendie - Suivi de flamme - Alarme visuelle/sonore - DWDR - Micro et haut-parleurs intégrés - IP66 - 12V POE

Garanties sécurité

Garanties sécurité vers SSL.

Politique de livraison

Retrait en boutique à Paris

Guarantee safe & secure checkout

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

120 (H) × 90 (V)

Pixel Pitch

17 μm

Spectral Range

8 μm–14 μm

Sensitivity (NETD)

< 60mK@f/1.0

Focal Length

1.2 mm

Field of View

Horizontal: 90°
Vertical: 67.5°

Thermal Focus Control

Fixed-focal

Field of Depth

> 3 cm

Aperture

F1.1

Flame Detection Distance

10 m: 10 cm × 10 cm

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2 MP

Min. Illumination

Color: 0.05 lux
B/W: 0.005 lux
0 lux (IR on)

Visible AGC

Auto; Manual

Visible Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Electronic Shutter Speed

1 s–1/30,000 s (manual/auto)

BLC

Yes

WDR

DWDR

HLC

Yes

Day/Night

Auto (ICR); Color and B/W

Iris Control

Fixed

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Visible Focus Control

Fixed-focal

Focal Length

4 mm

Field of View

H: 86°
V: 46°
D: 101°

Close Focus Distance

1 m (3.28 ft)

Aperture

F1.6

Illuminator

Illuminator On/Off Control

Auto; Manual

Illumination Distance

15 m (49.21 ft)

Illuminator Angle

100°

Audio and Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Resolution

Visible:
Main stream: 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 1920×1080 by default
Sub stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 by default

Video Frame Rate

Visible:

Main stream: 1 fps–25 fps adjustable, 25 fps by default Sub stream: 1 fps–25 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu; AAC; PCM

Image Encoding Format

JPEG

Function

Two-way Audio

Yes

Visible and Audible Alarm

Yes

Network Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Interoperability

ONVIF; GB/T28181; CGI; Dahua SDK

Browser

IE: IE 9 and later (Edge is not supported)
Chrome: 42 and earlier
Firefox: 42 and earlier

User/Host

Up to 10 (total bandwidth: 100 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 10 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection

Intelligence

Flame Detection

Yes

Cold/Hot Spot Trace

Yes

Port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

1 channel

Alarm Output

1 channel

Alarm Linkage

Relay output/Email/Snapshot

Alarm Event

Local audible and visual alarm notification

Power

Power Supply

12 VDC ± 20%; PoE

Power Consumption

Basic: 4.5 W (12 VDC, LED off)
Max.: 10.1 W (12 VDC, LED on, heat on)

Environment

Operating Temperature

–20°C to +60°C (–4°F to +140°F)

Operating Humidity

≤ 95%

Storage Temperature

–20°C to +70°C (–4°F to +158°F)

Construction

Protection

IP66, anti-surge 2 kV; anti-elctrostatic 6 kV (touched by objects); anti-elctrostatic 8 kV (air)

Product Dimensions

φ110mm × 88.6mm (φ4.33" × 3.49")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)

Installation

Ceiling mount

Power

Optional

Lens

Included

Bracket

Junction mount: PFA130-E

Marque DAHUA

Référence HY-FT121LDP-TD1F4

En stock 3 Produits
