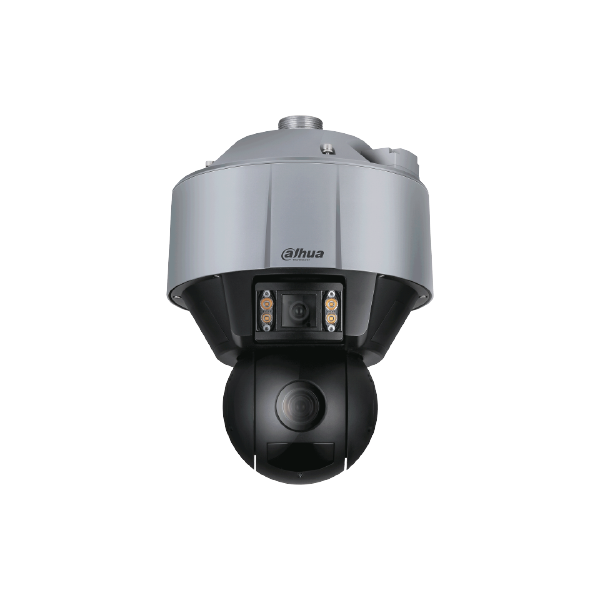

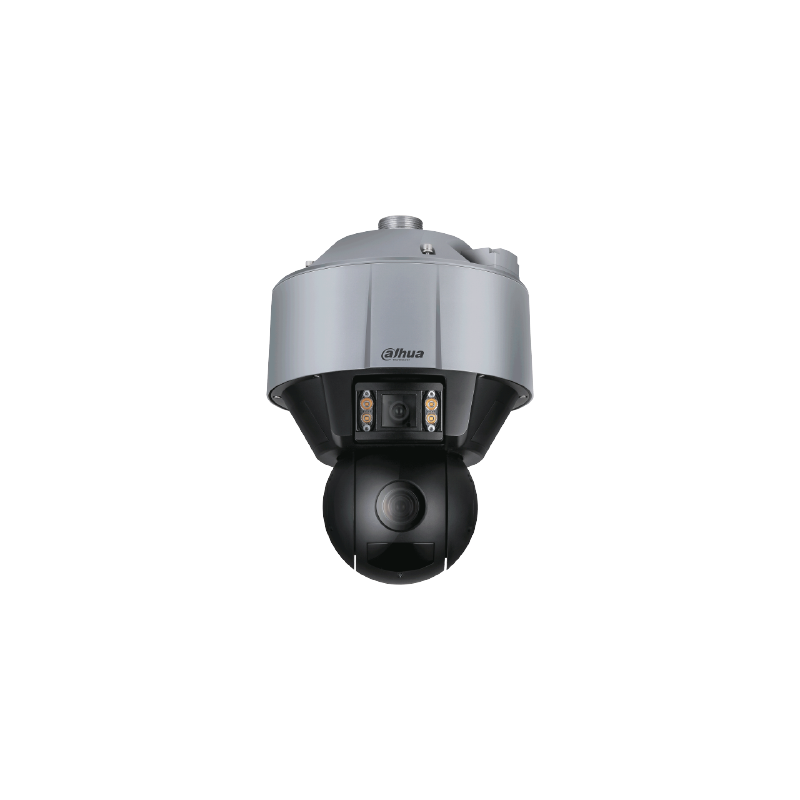

SDT5X405-4F-0600-WA

Camera

Image Sensor

Panorama: 1/1.8" CMOS
Detail: 1/1.8" CMOS

Pixel

Panorama: 4 MP
Detail: 4 MP

Max. Resolution

Panorama: 2688 (H) × 1520 (V)
Detail: 2688 (H) × 1520 (V)

ROM

8 GB

RAM

4 GB

Electronic Shutter Speed

Panorama: 1 s–1/30,000 s
Detail: 1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Panorama:
Color: 0.001 lux@F1.0
B/W: 0.0001 lux@F1.0
Detail:
Color: 0.001 lux@F1.3
B/W: 0.0001 lux@F1.3
0 lux (IR light on)

Illumination Distance

Panorama:
30 m (98.43 ft) (white light)
Detail:
100 m (328.08 ft) (IR)

Illuminator On/Off Control

Panorama:
Zoom Prio; Auto; Manual; Off
Detail:
Zoom Prio; Auto; Manual; Off

Illuminator Number

Panorama: 4 (white light)
Detail: 4 (IR)

Lens

Focal Length

Panorama: 6 mm
Detail: 10 mm–50 mm

Max. Aperture

Panorama: F1.0
Detail: F1.3–F1.5

Field of View

Panorama: H: 57°; V: 31°; D: 66°
Detail: H: 45°–10°; V: 26°–5.7°; D: 51°–11.5°

Optical Zoom

Panorama: NA
Detail: 5×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

Panorama: 0.2 m (0.66 ft)
Detail: 0.5 m–2 m (1.64 ft–6.56 ft)

Iris Control

Panorama: Fixed
Detail: Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

115.9 m (380.25 ft)

46.3 m (151.90 ft)

23.2 m (76.12 ft)

11.6 m (38.06 ft)

642.8 m (2108.92 ft)

257.1 m (843.50 ft)

128.6 m (421.92 ft)

64.3 m (210.96 ft)

PTZ

Pan/Tilt Range

Panorama:
Pan: 0° to 360° endless
Tilt: 0° to +30°
Detail:
Pan: 0° to +305°
Tilt: –10° to +90°

Manual Control Speed

Panorama:
Pan: 0.1°/s–100°/s
Tilt: 0.1°/s–25°/s
Detail:
Pan: 0.1°/s–120°/s
Tilt: 0.1°/s–50°/s

Preset Speed

Panorama:
Pan: 100°/s
Tilt: 50°/s
Detail:
Pan: 360°/s
Tilt: 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Scan

5

Power-off Memory

Yes

Idle Motion

Preset;Scan;Tour

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Intelligence

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body detection; tracking; optimization; capturing pictures; uploading high-quality face snapshots
Extracts 10 attributes from motor vehicles, 6 attributes from non-motor vehicles, 8 attributes from human bodies and 6 attributes from human faces.

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; Linking the detail camera to track targets

Face Recognition

Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. Supports up to 5 face databases; registers person one by one or in batches; sets face similarity; compares faces with 10,000 faces.

Auto Tracking

Yes

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; MJPEG(Sub Stream); H.264M

Streaming Capability

3 streams

Resolution

Panorama:
2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Detail:
2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Panorama:
Main stream: 4M/3M/1080p/1.3M/720p@(1–50/60 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Detail:
Main stream: 4M/3M/1080p/1.3M/720p@(1–50/60 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 2816 kbps–13056 kbps
H265: 1024 kbps–7936 kbps

Day/Night

Panorama:
Color/B/W
Detail:
Auto (ICR)/Color/B/W

BLC

Yes

WDR

Panorama: 140 dB

Detail: 140 dB

HLC

Yes

White Balance

Panorama: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Panorama: Electronic (EIS)
Detail: Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

S/N Ratio

Panorama: ≥55 dB
Detail: ≥55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

TCP;FTP;RTMP;IPv6;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;DDNS;UPnP;ICMP;UDP;IGMP;HTTP;DHCP;SMTP;SNMPv1/v2c/v3(MIB-2);Qos;RTSP;ARP

Interoperability

CGI;ONVIF

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512 GB)

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Management Software

DSS7016D-I;Cloud Connection;5 Series NVR;ICC-B8900;SmartPSS Plus;DSS-C9100;IVSS

Port

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT,bare wire)

Alarm Linkage

Capture; preset; tour; recordings on SD card; alarm digital input; send email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; unauthorized access detection

Alarm I/O

2/1

Audio I/O

1/1

Power

Power Supply

36 VDC/2.23 A (±25%)

Power Consumption

Basic: 23.5 W
Max.: 45 W (illuminator + intelligence + PTZ)

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤95%

Protection

IP67, TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

280.2 mm × 277.0 mm × 385.0 mm (11.03" × 10.91" × 15.16")

Net Weight

9 kg (19.84 lb)

Gross Weight

12.7 kg (27.99 lb)
